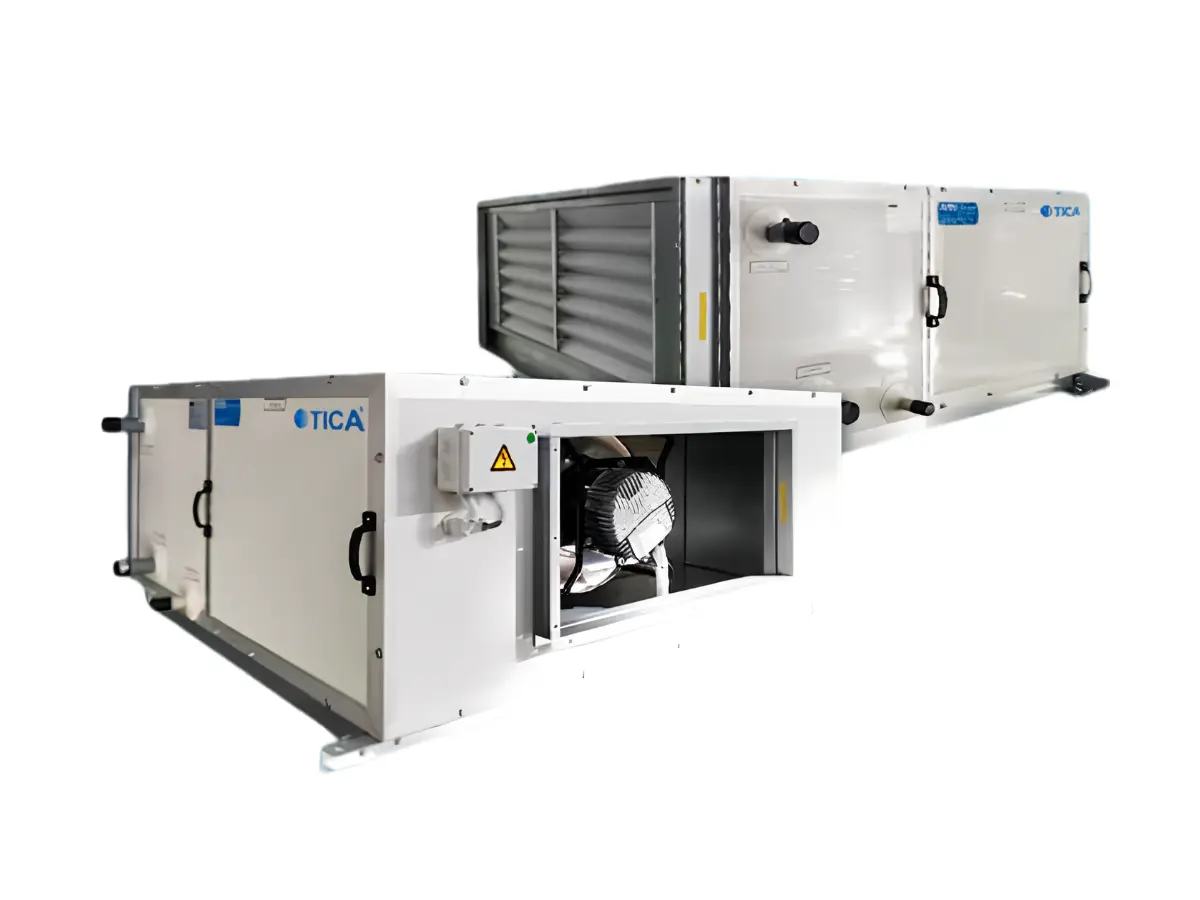

The TICA TFD-EC(G) Series Double Skin Fan Coil Unit (Mini Air Handling Unit) is a premium commercial HVAC solution designed to provide efficient air conditioning, superior indoor air quality, and long-term energy savings. Combining the performance of a traditional air handling unit with the compact footprint of a fan coil unit, the TFD-EC(G) Series is ideal for projects where space efficiency, quiet operation, and high performance are essential.
High-Efficiency EC Plug Fan: Utilizes permanent magnet motor technology and backward-curved impellers to significantly reduce energy consumption, eliminate conventional motor losses, and lower operating costs. Includes maintenance-free, lubrication-free bearings.
Intelligent Controls & BMS Integration: Features variable speed fan control via a 0–10V analog signal, built-in overload protection, and RS485 Modbus communication for seamless Building Management System (BMS) integration.
Premium Cabinet Design: Constructed with a 25 mm double-skin insulated cabinet that prevents condensation, minimizes heat loss, and reduces operational noise.
Patented Frameless Construction: Precision-engineered aluminum alloy profiles with interlocking joints minimize air leakage, boosting overall system durability and efficiency.
AHRI-Certified: Both the casing and cooling coil are AHRI-certified, ensuring independently verified performance and dependable operation under real-world conditions.
Flexible Configurations: Available in multiple cooling coil options (3, 4, or 6 rows), optional heating coils, and optional DX (Direct Expansion) coils. Offers left- or right-hand piping arrangements to adapt to any mechanical room layout.
Space-Saving Installation: Specifically designed for ceiling-suspended installation, its compact profile easily fits above false ceilings without sacrificing serviceability.
| Parameter | Specification |
| Airflow Capacity | 1,883 to 9,781 m³/h |
| Cooling Capacity | Up to 67.9 kW (with chilled water systems) |
| Cabinet Insulation | 25 mm Double-Skin |
| Fan Control Signal | 0–10V Analog |
| Protocol | RS485 Modbus |
| Certifications | AHRI-Certified (Casing & Cooling Coil) |
| Applications | Commercial, Institutional, and Industrial HVAC |
